1, Introduction

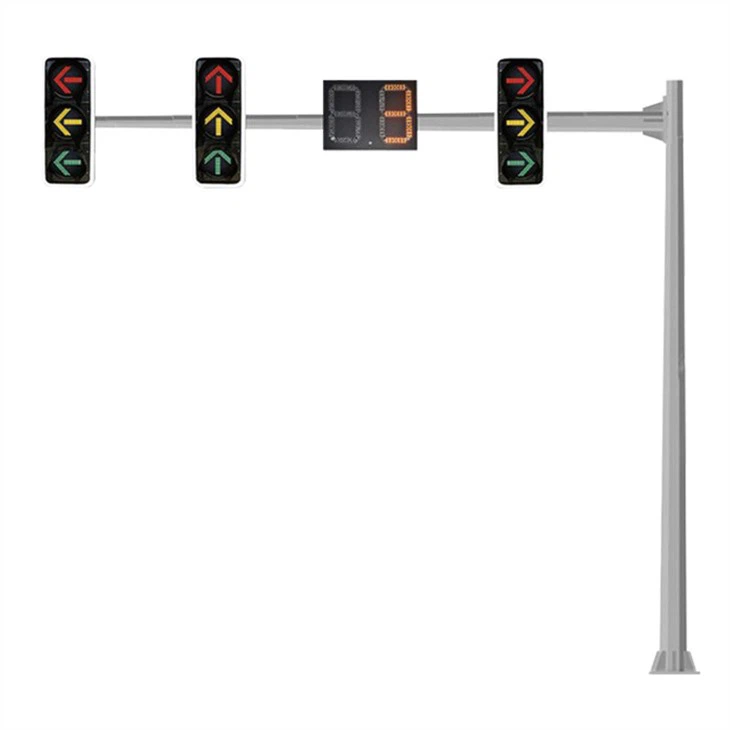

Traffic light post is an important part of traffic signal and an important frame part of road traffic signal lamp. The signal lamp pole is divided into octagonal signal pole, cylindrical signal lamp pole, conical signal lamp pole single, cantilever signal lamp pole, double cantilever signal lamp pole, frame signal lamp pole and integrated signal lamp pole according to its structure. The marker pole is composed of a vertical pole, a connecting flange, a modeled arm, an installation flange and a buried steel structure. The vertical pole or a transverse arm are made of straight seam or seamless steel pipe.
2,Specification
|
Material |
Q195 Q235 Q345 or as your request |
|
Shape |
Round conical; Octagonal tapered; Straight square; Tubular stepped; |
|
Technique |
hot rolled |
|
Thickness |
2-6mm or as your request |
|
Length |
4-12m or as your request |
|
Powder coating |
Can be powder coated or painted according to clients' request |
|
Brackets/ Arm |
Single or double brackets/ arm are in the shape and dimension as per customers requirement |
|
Galvanizing |
Hot dip galvanization with thickness of 80-100µm average |
|
Wind Resistance |
Against wind pressure of 160Km/h |
3, Details
4, Feature and Application
• The vertical or transverse arm of the traffic light post adopts straight seam steel pipe or seamless steel pipe; the connecting end of the vertical and transverse arm adopts the same steel pipe as the transverse arm, and the welded reinforcement plate is protected.
• Flange and pre-embedded bolts are used to connect the vertical pole and the foundation, and welding reinforcement plate is used to protect the foundation; flange is used to connect the horizontal arm and the end of the vertical pole, and welding reinforcement plate is used to protect the foundation.
• The lamp post is hot-dip galvanized inside and outside. Galvanizing process includes cleaning, phosphate, pickling, galvanizing, passivity and so on.
• The height, diameter and thickness will produce as your required. There is a flange at the bottom of the light pole.
• Electrostatic spray after galvanized. The color can be customized.
5, Production Process
6,Packaging and Shipping
7,FAQ
Q1. What is the warranty?
A: We offer 3-5 years warranty.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs15-20 days.
Q3. What about Payment of the traffic light post?
A: Bank Transfer (TT), PayPal, Western Union, Trade assurance; 30% the amount should be paid before producing, the balance 70% of the payment should be paid before shipping.
Q4 : Can I mix different items in one container?
A: Yes, different items can be mixed in one container.
Q5. What is your terms of packing?
A: Generally speaking, our goods are packed in neutral cartons. If it's fragile, we'll make wooden frames. We can also make wooden frames according to your requirements.
