Introduction
Whether it is a street at night or a sports venue, good lighting is required. The Flood Light Pole is an important part. It uses a high-quality hot-rolled steel plate as raw material, which is a kind of steel that is heated and rolled at high temperatures. It has good plasticity and can be easily manufactured into various forms to meet various needs. After bending the material into the desired shape, and then performing welding, polishing, galvanizing, and other steps, the finished product can be obtained. Galvanized or powder coated, our products can be used outdoors without worrying about rust. You can choose from a variety of shapes, and our Flood Light Poles are also great for airports, seaports, stadiums, and more.

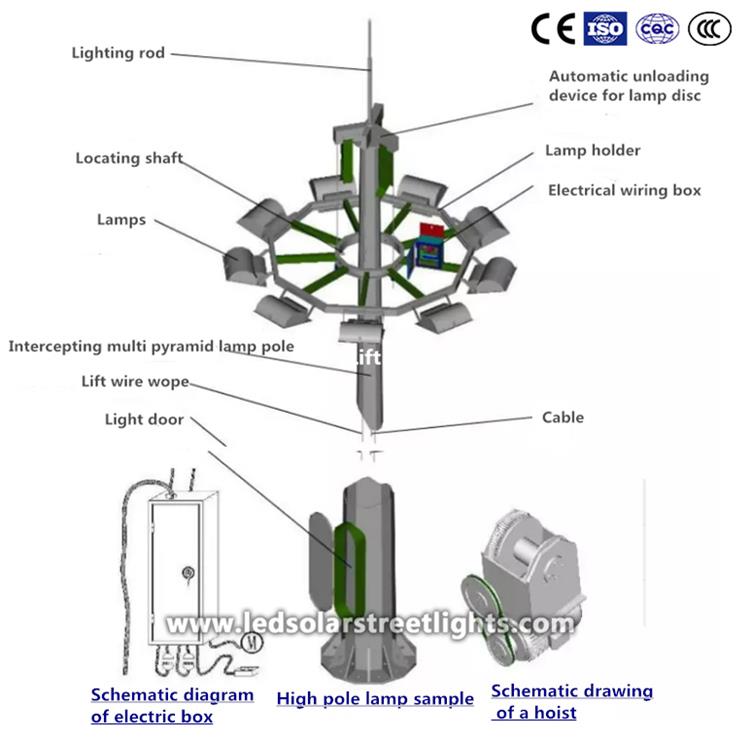

Details
1.Design standard: AASHTO standard
2.Wind speed: more than 30M/sec
3.Anti-seismic design: more than level 7
4.Mast material: ASTM A572 GR65/Q345/Q235
5.Mast structure: 12/16/20 sided
6.Mast assembly: no welding on site
7.Anti-corrosion protection: hot dip galvanization/hot dip galvanization and powder coating
Specification
| Product Name | Flood Light Pole |
Height | From 8 m to 35m |
Suit for | Airport ,seaport, plaza, stadium ,square, highway, street way etc |
Shape | Conoid ,Multi-pyramidal, Columniform, Polygonal or conical |
Material | Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, |
Lamp power | 200 W- 2000 W (HPS/MH) |
Torrance of the dimension | +- 2% |
Optical assembly of lighting fixture | IP 65 |
Electroshock resistant protective grade | Grade one |
The casing anti-corrosion performance | Class two |
Working atmosphere of lighting fixture | -35 °C~+45 °C |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client |
Joint of Poles | Insert mode, inner flange mode, face to face joint mode |
Design of pole | Against earthquake of 8 grade |
Wind Speed | 160 Km/Hour |
Minimum yield strength | 355 mpa |
Minimum ultimate tensile strength | 490 mpa |
Max ultimate tensile strength | 620 mpa |
Standard | ISO 9001 |
Length of per section | Within 14m once forming without slip joint |
Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in |
Thickness | 1 mm to 30 mm |
Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify |

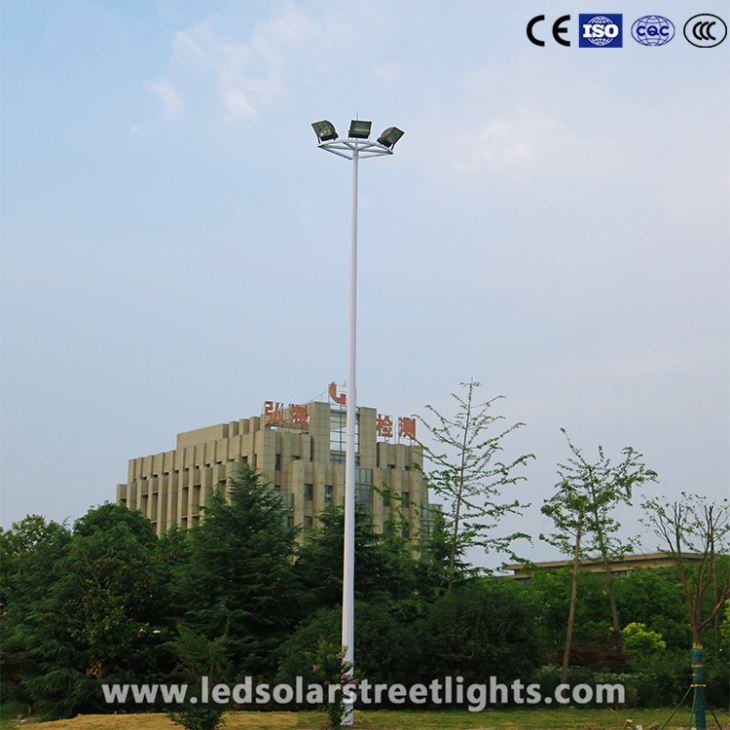

Application

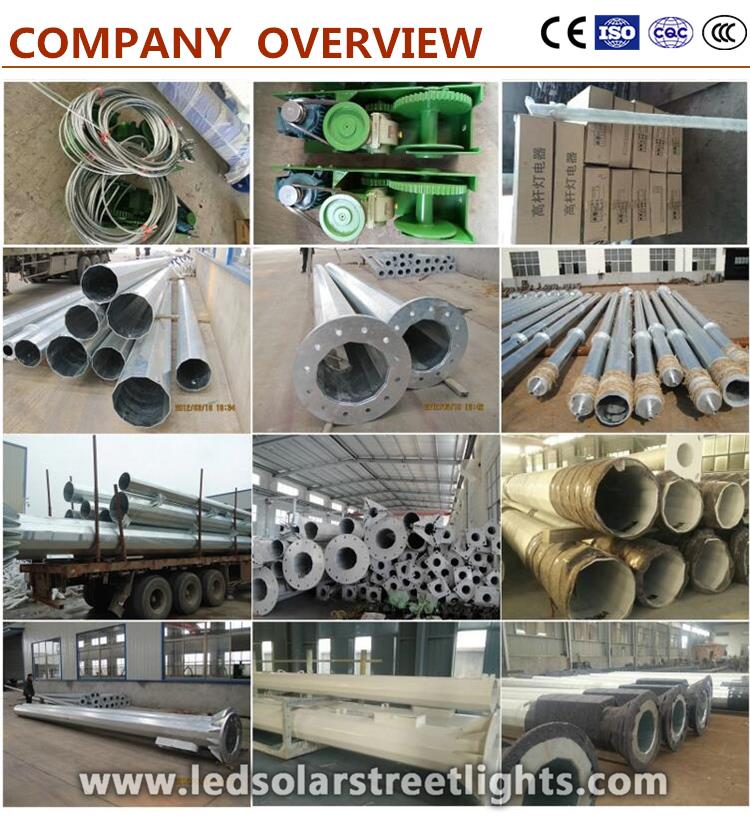

Production Process
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time usually needs 2-3weeks.
Q3. What about payment terms?
A: Bank Transfer (TT), PayPal, Western Union, Trade assurance. 30% the amount should be paid before producing, the balance 70% of the payment should be paid before shipping.
Q4. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q5. How do you ship and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
