Product Introduction

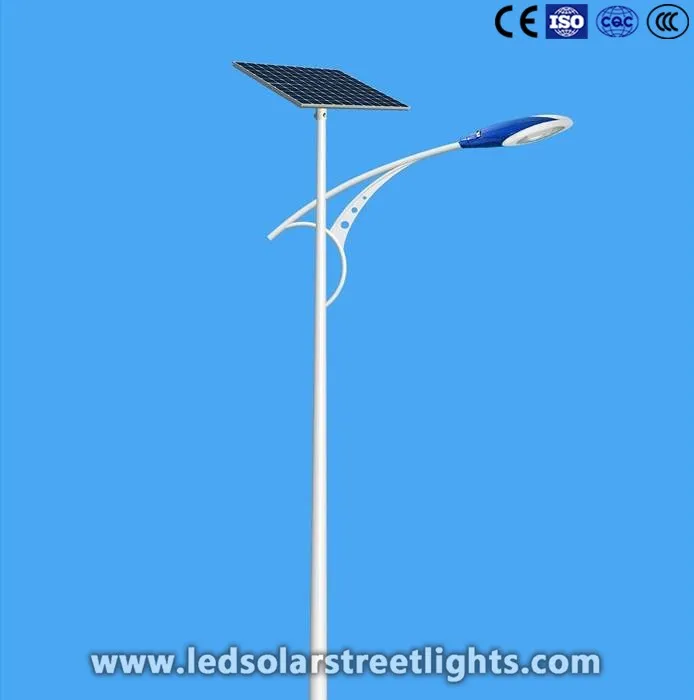

The 30W Solar Street Light has excellent safety assurance, enabling stable voltage and reliable operation with no hidden safety hazards. This street light is an ideal product for ecological community and road administration department, and is also suitable for urban expressways, highways, pathways etc. Its rated life is over 50000hours, and has good resistance to weather factors and outdoor situations.

Product Description

The 30W Solar Street Light realizes the function to ensure easy installation. When installing solar street lights, there is no need to provide complicated lines, only a concrete base, a battery pit, and galvanized bolts can be used, with no massive labour, materials or financial resources needed. Compared with other products on the market, this device ensures longer service life for use and there is no special need of maintaining. It adopts lithium battery to replace traditional gel battery, making the lifespan reach to 5-8 years.

30W Solar Street Light can work between minus 40 degrees and 50 degrees, which frees you from worrying if it will malfunction outside. Its beam angle can be adjusted within 120°, which can perfectly suit your lighting need. Its Lithium iron phosphate Battery has the lifetime of 5-7 years. So if you are looking for a street light installation, or just a lighting device, this will be the right choice.

LED Lamp

Power	30W , 24W - 120W available
Luminous flux	130lm/W
Light source	Epistar SMD LED or Customized
Light degradation rate	25000h ≤ 30%
Ra	>70
PF	≥0.95
Driver	SHINYLAND or MEANWELL
Beam angle	120° Both available
Rated life	≥50000h
CCT	1800K - 7000K all available
Working temperature	-40°C ~ +50°C
Input wattage	AC90-260V 50-60Hz ( AC375V , DC12V , DC24V available on request)
IP rate	IP65
Brand	SHINYLAND & Customized
Warranty	3 years
Certificate	CE, ROHS, BIS, SAA,TUV, EMC, LVD
Application	Urban expressways, highways, roads, streets, etc
Payment terms	By T.T, Western Union, L/C, etc
MOQ	1pcs

Parameters of Solar Panel

Power	30W~150W(can be customized)
Frame(Material.)	Anodized aluminum alloy
Module Efficiency	13.21%
IP Grade	IP65
Cell Efficiency(%)	17.50%
Power Tolerance	0 ~ +5W
Front Glass Thickness(mm)	3.2mm
Cable	2.5mm2 (IEC) / 12AWG (UL), 900mm (650mm is optional)
Connectors	MC4 or MC4 compatible
Temperature Range	-40°C ~85°C
Warranty	90% of 10 years,80% of 25 years.

Parameters of Lithium Battery

Type	Lithium iron phosphate Battery
Operating Voltage	12V
Rated capacity	20AH~120AH
Battery Storage Working Temperature	-25°C～60°C
Working Humidity	No more than 85% RH
Rating Current	10A
Protection Mode	Overcharge, over-discharge and overload protection, as well as short-circuit and reverse connection protection
Controller Efficiency	>95%
Lifetime	5~7 years

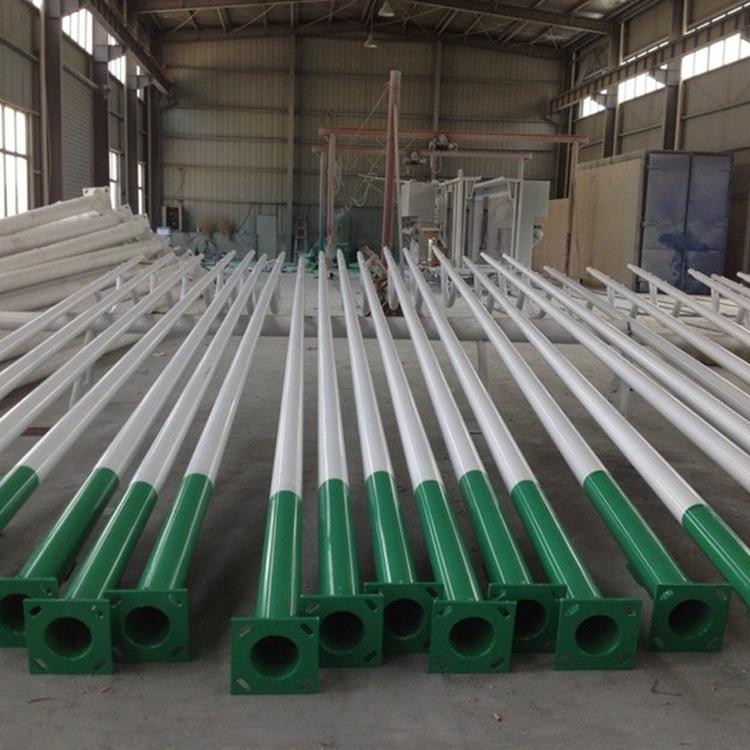

Parameters of Light Pole

Material	Q235 Steel
Type	Octagonal or Conical
Height	5～11M
Galvanizing	Hot dip galvanized (average 100 micron)
Powder Coating	Customized powder coating color
Wind Resistance	Designed to with stand wind speed of 160km/hr
Life Span	＞20 years

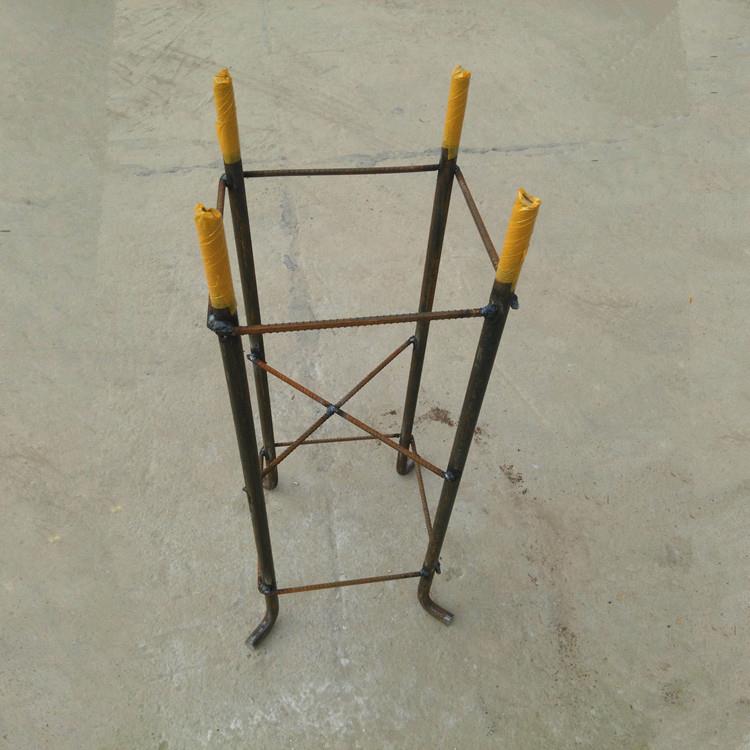

Parameters of Anchor Bolt

Material	Q235 Steel
Bolts and Nuts Material	Stainless Steel
Galvanizing	Cold dip galvanized process ( optional )
Features	Detachable, helping to save transport space and cost

The above configuration is only for reference and the actual configuration is designed according to the actual conditions and the customer special requirements.

Feature and Application

• Simple design, portable, practical.

• Easy installation,no power required, no cables required.

• Good safety performance, 12-24V stable voltage, reliable operation.

• 30W Solar Street Light adopts lithium battery to replace traditional gel battery, lifespan about 5-8 years, twice of the traditional gel battery, lowering the battery maintenance rate of solar street lights.

• High-quality steel, hot-dip galvanizing inside and outside, surface electrostatic spraying, good corrosion resistance; color, height and specifications can be selected according to the design requirements.

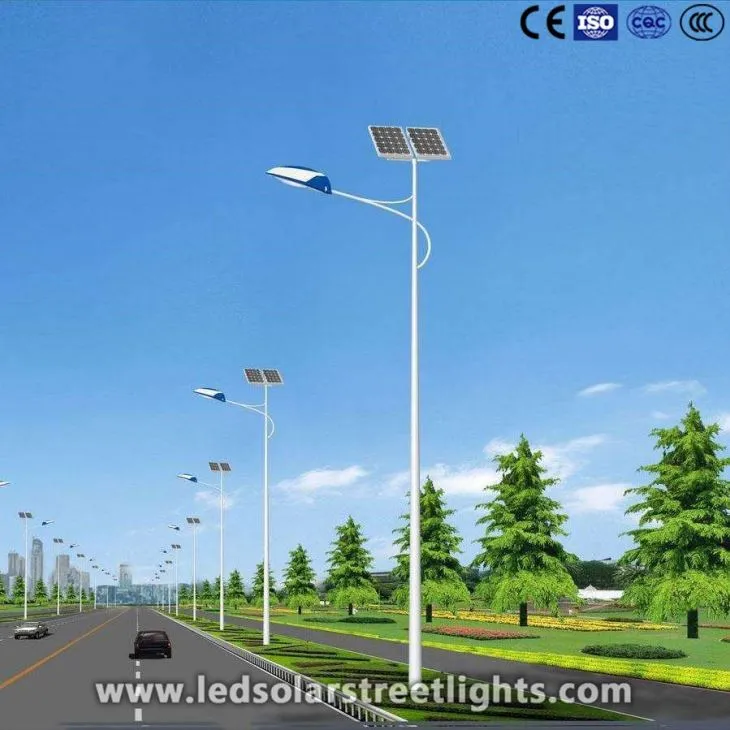

Application of 30W Solar Street Light
